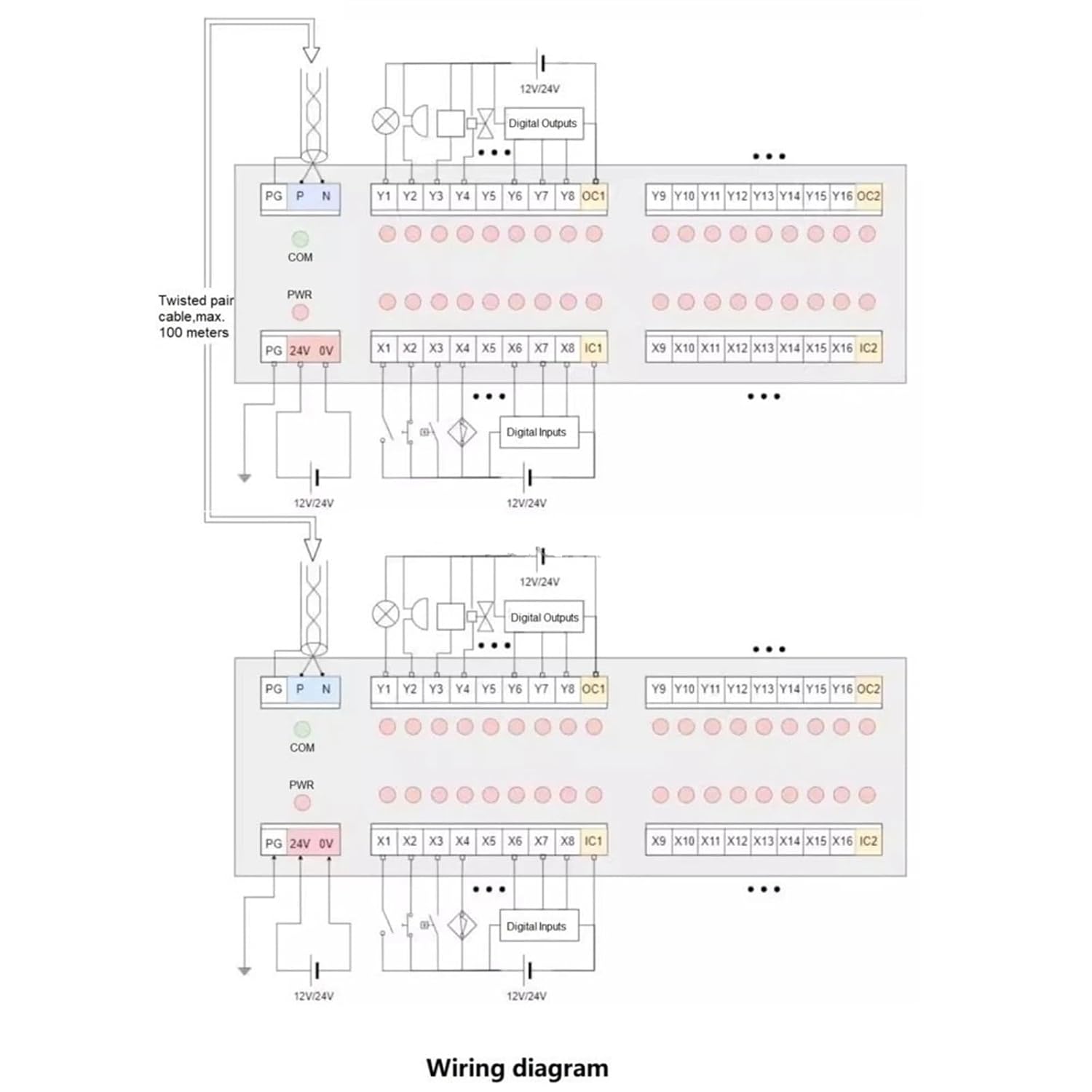

1 Pair 16 in 16 Out Bus Terminal Module to Remote Control Inputs Outputs By 100M Twisted Pair Cable I/O Signal Isolation

Terminal BlocksThe bus terminal module is an industrial automation architecture that is used in pairs. One terminal module is located on the device, close to the sensor and actuator, and the other terminal module is located in the control cabinet. They are connected by a simple twisted pair. This layout helps simplify cabling, reduces signal interference, and increases system flexibility and scalability.. The terminal strip can be located further away from the controller, closer to the sensors and actuators, and connected via a bus to the central control box. Use the same terminal strip in the control box to restore the signal to a normal IO signal again.. There is only one twisted pair bus between the actuator (such as mechanical equipment) and the control cabinet for data exchange.. The terminal strip is modular, making it easy to add and remove modules.Features:. Reduced wiring: Wiring length and complexity are reduced due to twisted pair connections between terminal strips.. Improved interference capability: Ordinary IO signals, after being converted into bus signals, can be transmitted more reliably.. Easy to maintain and expand: The modular design of the system makes maintenance and expansion easier.. Cost-Effectiveness: Reducing cabling and maintenance requirements reduces overall costs in the long term.Applications. In automated production lines, bus terminals are used to connect various sensors and actuator solenoid valves.. In chemical, pharmaceutical and other industries, bus terminals greatly reduce the complexity of signal line wiring.. Building Automation: In smart building systems, used to control lighting, HVAC and security systems.. Used in various non-standard equipment and remote control to improve wiring efficiency, reduce failure rate and facilitate maintenance.Specifications. Power supply: 12V/24V (7~27V wide voltage). Power overvoltage protection: Min.27V Typ:27.5V Max:28V. Power consumption:2W(max.). Input terminals voltage: 3.3V/5V/12V/24V optional.. Input terminals current: 5mA@3.3V, 10mA@5V, 5mA@12V, 10mA@24V. Output signal type: NPN or PNP optional.. Output voltage: 30V. Output current: 1.5A (Max.). Output resistance:100m.. Module refresh cycle: 0.001 seconds. Max. transmission distance:100 meters==========Output Type : Model Number : LWYDIY Supplies : ELECTRICAL
