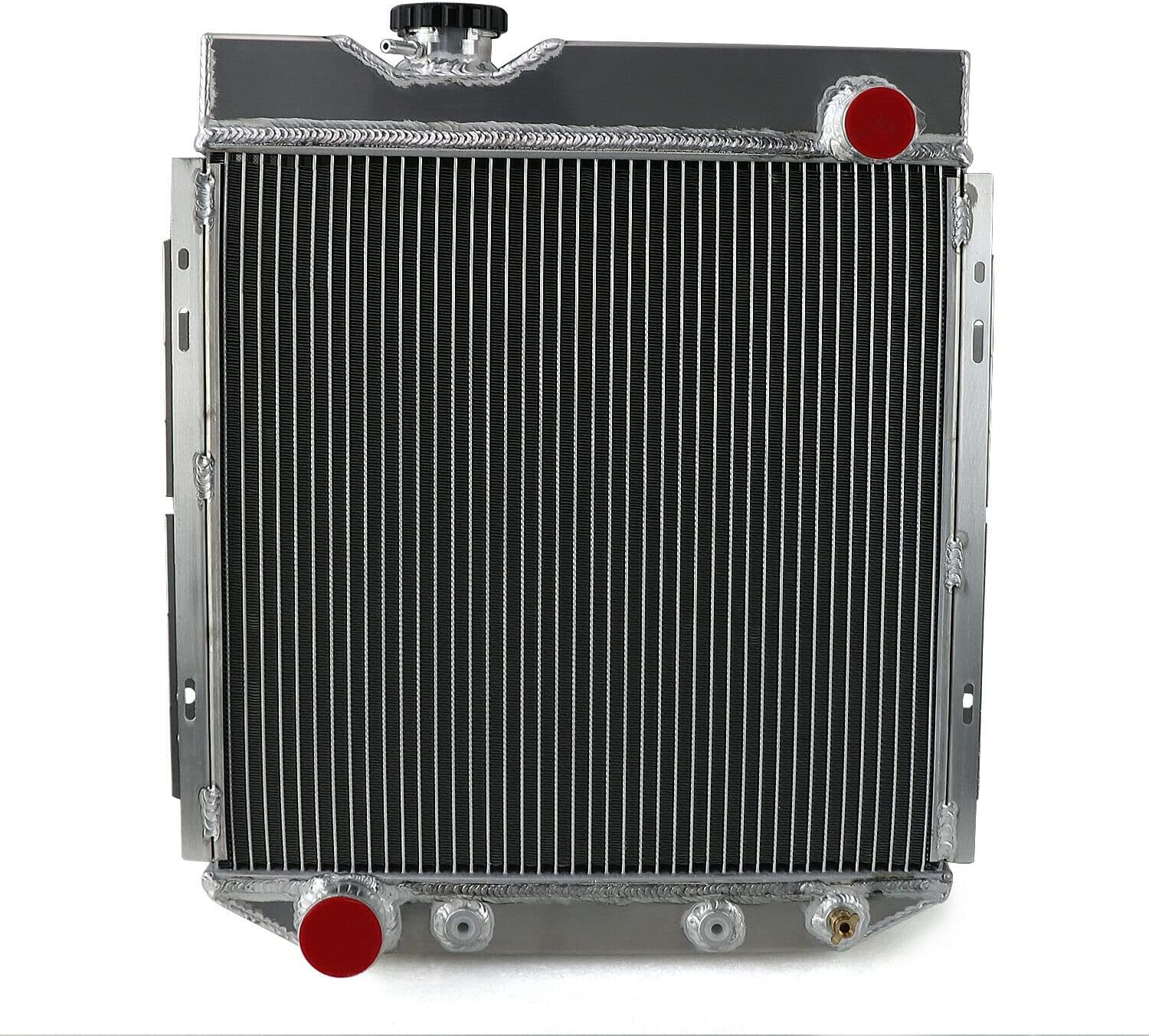

3 ROW Radiator+Shroud Fan For 1965-1966 Ford Mustang 5.0L Conversion V8 AT/MT -Replacement Radiator

Vehicle Fitment: For 60 61 62 63 64 65 Ford Falcon For Ford Mustang 64 65 66 For Ford Ranchero 60 61 62 63 64 65 66 For 65 66 Ford Mustang 5.0 Conversion V8 For 61 62 63 64 65 Mercury Comet For 60-66 FORD/MERCURY SBC/MUSTANG 3.3L l6/V8 For Ford Mustang /Falcon/Ranchero/Mercury Comet/V8 conversion This Radiator Size 3-Row of tubes Core Racing Design Core Dimensions: 16-1/2" High x 17" Wide Overall Dimensions: 21-3/4" High x 19-5/8" Wide Upper INLET: 1-1/2" located on the Passenger side. Lower OUTLET: 1-3/4" located on Driver side. Mounting System: Bracket Transmission Cooler: Included FAN Specification: Maximum Fan CFM: 1730 cfm Fan Diameter (in): 14.050" Thickness (in): 2.500" Number of Blades: 8 S-Type blades Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit: Universal fit for any automotive vehicle and electric fan.Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. This set up will run Fans & pull air in through radiator. Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect! S blade fans, Push or Pull Type design,lightweight Plastic Durable Material. Additional with thermostat,professional matching advice, consider for every detail and needed 1.Brazed core technology to guarantee optimum performance and dependability 2.Billet Aluminum CNC machined fill neck rugged and durable 3.Ergonomic design CNC machined cap with Engraved craftsmanship, anodized treatment 4.Carefully crafted to exceptional OE standards for precise fit.

• Material -Full aviation-aluminum craftsmanship, 100% welded by TIG. Carefully crafted to exceptional OE standards for a precise fit, Aircraft 5057 grade aluminium and with raw aluminium finish
• Overall Dimensions: 21-3/4" High x 19-5/8" Wide
• This Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to 4，temperature surges in racing applications.
• Application: For Mercury Comet 1960-1966/Ford Model-T 1924 ,For Ford Mustang/Ford Ranchero/Falcon 1960-1966, For both Automatic Transmission
• We are an seller specializing in the sale of auto parts, mainly selling various Rows of Radiators, Intercoolers, pipe Kits, Wheel Spacers, oil cans ect. We Sell auto parts for various models, we have our own production line with more than 20 years of mature production.
• Easy To Install: Light weight direct bolt-on replacement, stronger & higher capacity for coolant
• 12 Months warranty ; If you meet any problem, please contact us by sending Amazon Message, we will try our best to help you.
