Electric meter,5-80a Consumption Kwh 4 Wire Meter Consumption Kwh Meter Kwh Meter Din With Lcd Display 220/380v 5-80a Consumption Rail Meter 3 4 Wire Din Rail Eryue White Qisuo

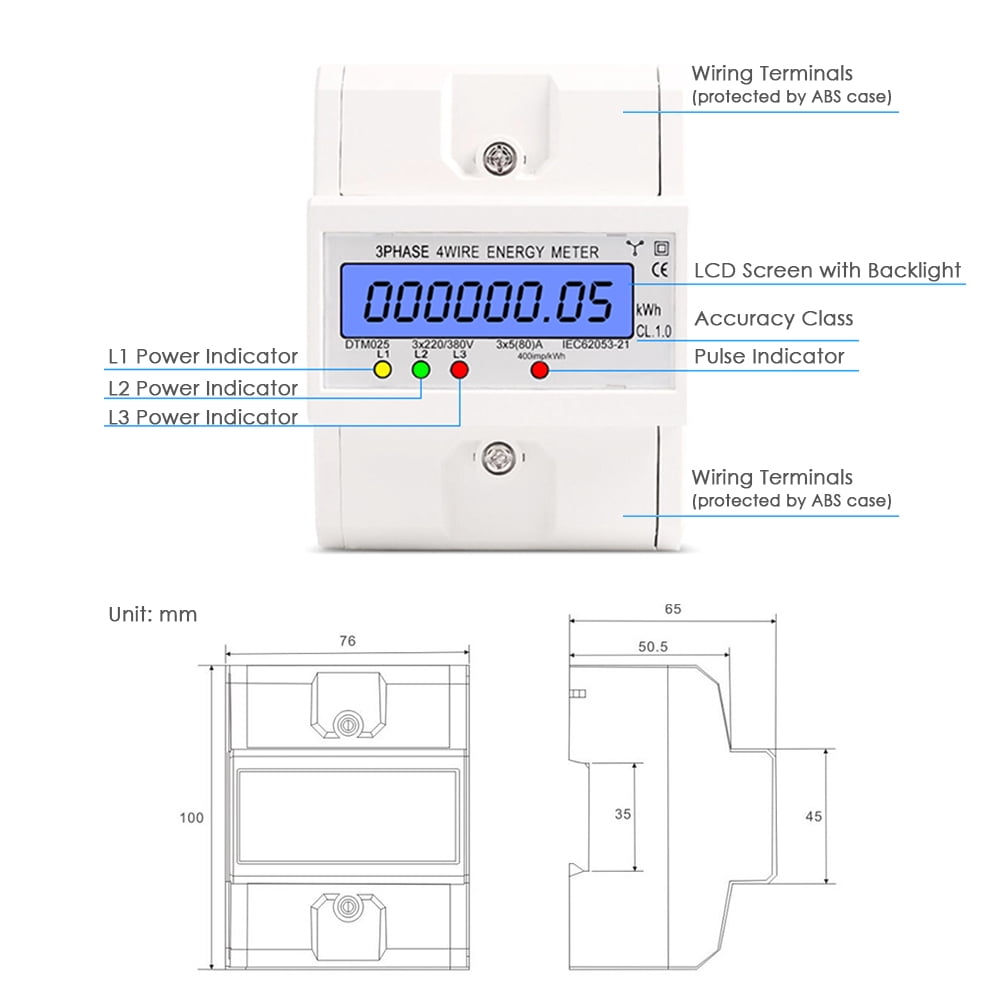

3 Phase 4 Wire Energy Meter 220/380V 5-80A Energy Consumption kWh Meter DIN Rail Installation Digital Electric Power Meter with LCD Backlight Display 3-phase 4-wire energy meter with high accuracy is designed for measurement of rated frequency 50 or 60Hz single-phase AC active electricity. Adopts 35mm DIN standard guide rail installation, compact size and light weight make installation easier. With 6+2 digits backlight LCD display, meter accurately counts and clearly displays energy consumption. Pure copper wiring terminal with excellent conductivity and corrosion resistance can ensure large current during long-time performance. High-quality retardant ABS case, with good impact resistance, heat/ cold resistance, insulativity and durability.<br><br>It's a simple three phase four module DIN rail meter with retardant ABS case, which is widely used in sub-metering system. It's of concise appearance, compact size and good quality, to use.<br><br>Specifications:<br>Consumption: 2W<br>Accuracy Class: 1.0<br>Item Size: 100 * 76 * 65mm / in<br>Starting Current: 0.004lb<br>Standard: IEC62053-21<br>Voltage: 3x220/380V<br>Package Weight: 400g / 14.11oz<br>Case Color: Transparent/ White (Optional)<br>Frequency: 50/ 60Hz<br>Working Temperature: -20~55<br>Display: LCD Display with Backlight<br>Item Weight: 380g / 13.40oz<br>Package Size: 110 * 80 * 70mm / in<br>Impulse Constant: 400imp/kWh<br>Current: 3x5(80)A<br>Storage Temperature: -25~70<br>Material: Retardant ABS<br><br><br>Note:Size and color may be slightly different due to manual measurement and different conditions. Thanks for understanding.<br><br>Package List:<br>1 * User Manual<br>1 * Energy Meter<br>

• 3-phase 4-wire energy meter with high accuracy is designed for the measurement of rated frequency 50 or 60Hz single-phase AC active electricity.

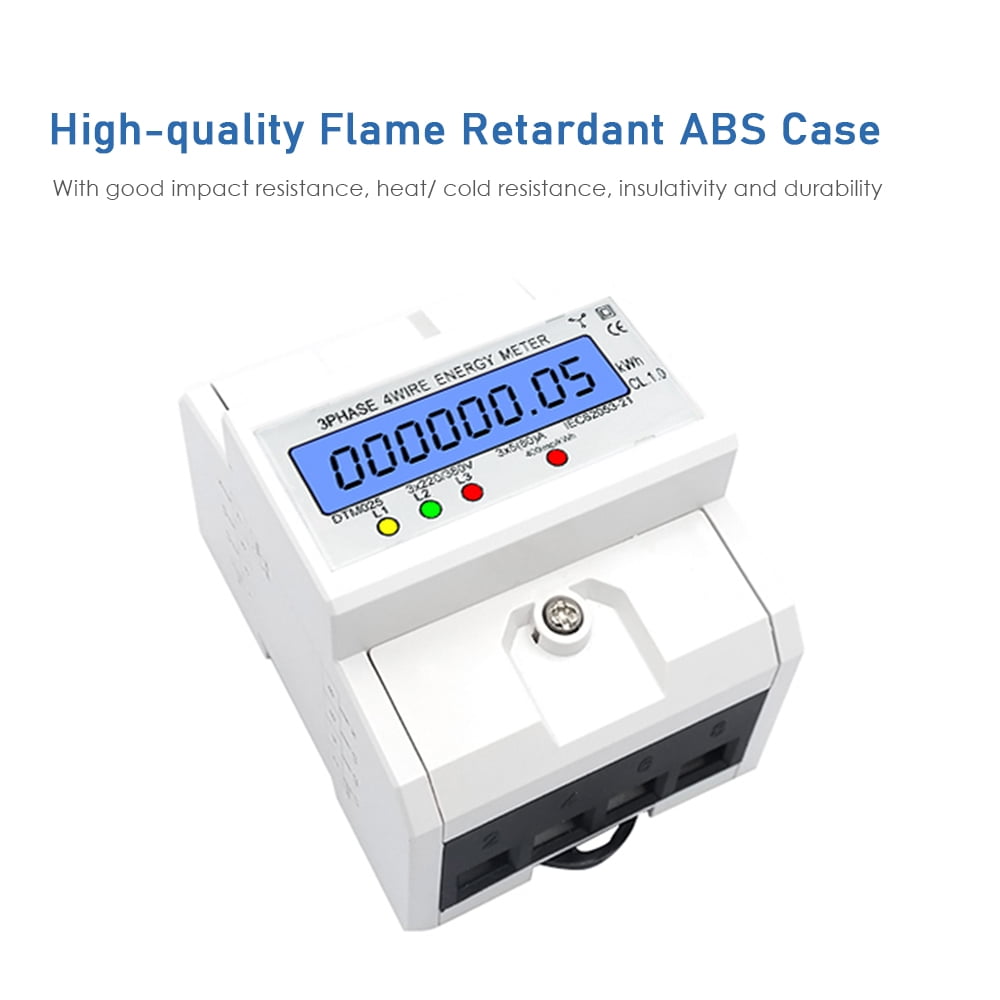

• High-quality flame retardant ABS case, with good impact resistance, heat/ cold resistance, insulativity and durability.

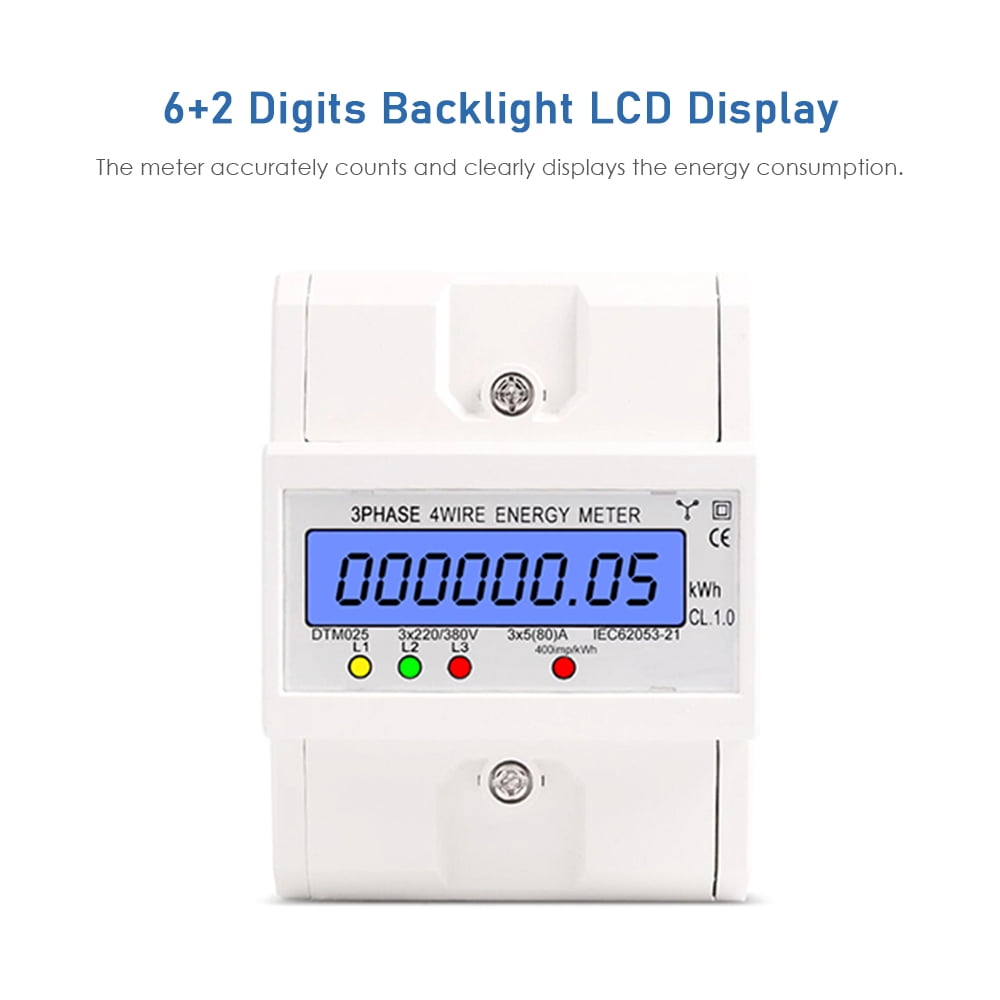

• With 6+2 digits backlight LCD display, the meter accurately counts and clearly displays the energy consumption.

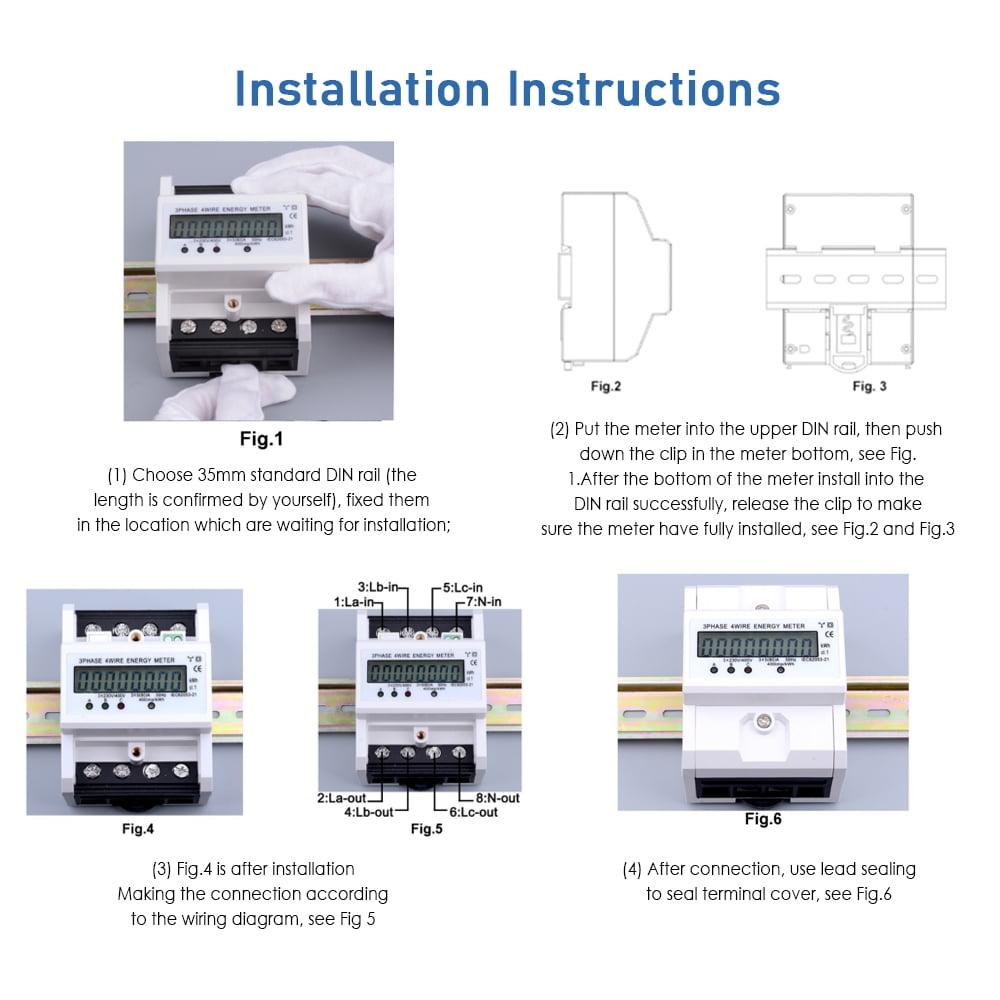

• Adopts 35mm DIN standard guide rail installation, compact size and light weight make installation easier.
• Pure copper wiring terminal with excellent conductivity and corrosion resistance can ensure large current during long-time performance.
