SK-608 Sonic Belt Tension Meter Tester Digital Belt Tension Gauge for Belt Tension Testing | Belt Tension Range 0.01N-99900N | Frequency Range 10.0Hz-5000Hz | Measurement Time 0.2s
US$340.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.trigon-rechtsanwaelte.de
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$340.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.trigon-rechtsanwaelte.de
Free 30-day returns Details
Product details
| Management number | 221349864 | Release Date | 2026/05/03 | List Price | US$340.00 | Model Number | 221349864 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Importance of Belt Tension: Belt tension directly affects performance and efficiency; improper tension leads to premature wear and costly maintenance; accurate measurement ensures reliable operations
- Improved Measurement Sensitivity: Enhanced frequency band sensitivity; improved range settings; LOW range switch for low tension and long span measurements; accurate and stable results for various applications
- Reduced Measurement Time: Displays tension value within 0.2 second of belt vibration sound detection; LED indicator for immediate results; allows continuous, stressfree measurements; boosts productivity
- OLED Screen: OLED screen provides clear display even in dark environments; easy screen recognition from oblique angles in cramped spaces; improves user experience in challenging conditions
- Auto Trigger Function: After pressing the “MEASURE” button, the device activates an auto trigger feature that enables hands-free, continuous measurements—just flip the belt to take the next reading.
- Auto Power-Off: To conserve battery life, the device automatically powers down approximately five minutes after the last measurement, eliminating the risk of draining the battery if you forget to turn it off.
- Automatic Background Noise Cancellation: When the device is powered on, it continuously monitors the surrounding noise environment and automatically adjusts the microphone sensitivity. Once you press the “MEASURE” button, the sensitivity is locked in, ensuring accurate and consistent results.
- Wide Range of Applications: Suitable for most belt types, including Vbelts, clothwrapped belts, toothed edge belts, multiV belts, linkage belts, synchronous belts, and transmission belts; ensures quick and accurate tension measurements
- Improved Frequency Range: Low (10-50 Hz); Standard (10-1000 Hz); High (900-5000 Hz)
| Model | SK-608 |
|---|---|
| Brand Name | SULMILE |
| Item Weight | 0.26 Pounds |
| Part Number | HKNDTSK608 |
| Manufacturer | HKNDT INSTRUMENTS |
| Item Dimensions | 2.3 x 1 x 6.3 inches |

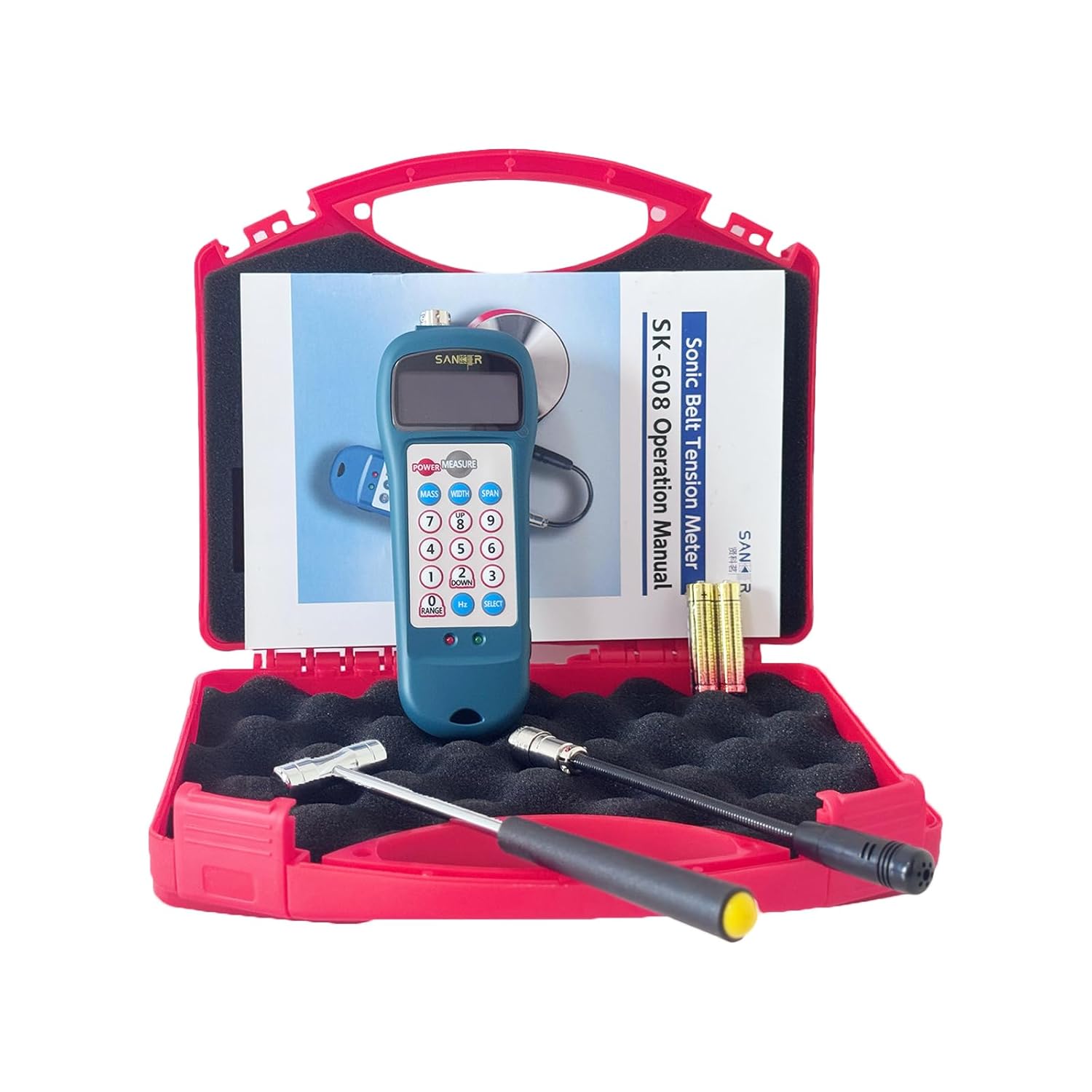

| Included Components | Host * 1, Acoustic Sensor * 1, User Manual * 1 |
